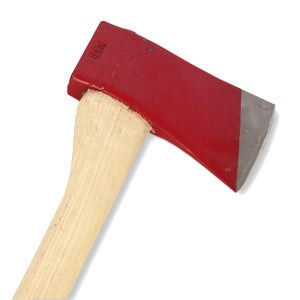

Miner's Axe Tool-Dayton Pattern, 20 inch Wood, Council Tools

3.5 lbs. Dayton pattern single bit axe with 26 in. straight handle. Known as a miner’s axe, the short handle is used for close quarters work. Cutting edge is approximately 4.75″ of overall length and the poll is square.

SPECS:

• Forged steel head.
• Hand sharpened, tapered bit for cutting and splitting.
• ANSI Standards call for bit hardness of Rc 45-60, at least ½ inch back from the cutting edge. Council Tool internal standards call for tempered bit hardness of Rc 48-55 and we target 1-1/4 inches from the cutting edge. The poll and eye walls are not hardened and remain in the as forged condition.
• Body coated with red enamel and the cutting edges in clear lacquer to deter rust.
• 26 in. straight American hickory handle. Eye section is dried to below 10% moisture content to minimize shrinkage and help prevent loosening.
• Axe head is hydraulically seated onto handle and secured with a serrated aluminum wedge. The serrated shape improves bite and the aluminum choice of material is strong, lightweight and does not change size with moisture content.
• The interior detail of the eye is tapered and allows for a strong mechanical bond. Approximately 1/2 in. of the overall length of the handle is removed during assembly.

California Residents: Prop 65 Warning Here

MPN 35MD20
